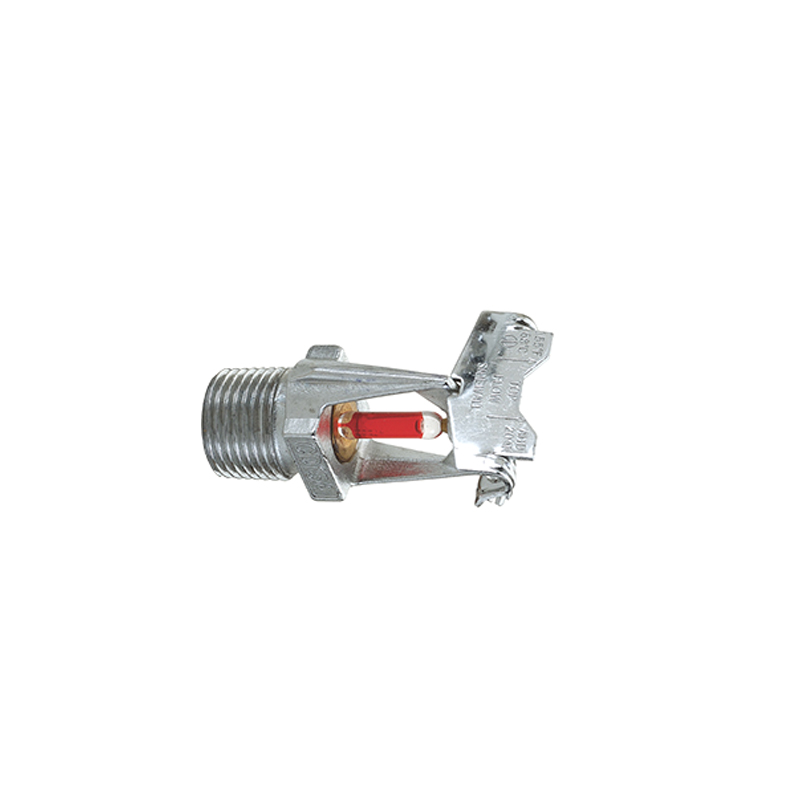

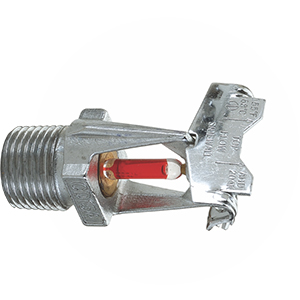

Sidewall Mounted fire sprinklers are designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13). The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings.
The sprinklers body is made of brass die-casting copper alloy (DZR). The spring seat consists of a spring Belleville washer coated on both side with a Teflon tape.
Sidewall heads have a deflector that usually combines a semicircle and a flat plate that runs perpendicular to it. That shape guides water away from one direction and toward the intended direction.
– UL Listed
– Made out of Bronze
– Maximum working pressure 175 PSI/11.6kg/m2
| Response | Orientation | SIN No | K Factor | Make | End | Temperature | Approval | Finish |
| Connection | Rating | |||||||
| Standard | Horizontal Sidewall | NI012 | 5.6 (80) | New Age | 1⁄2” NPT or 1⁄2” PT | 68°C/79°C | UL Listed | Chrome |
| Quick | Horizontal Sidewall | NI022 | 5.6 (80) | New Age | 1⁄2” NPT or 1⁄2” PT | 68°C/79°C | UL Listed | Chrome |
